Pipa Stainless Steel OD 8 - 108mm Untuk Struktur Mekanik / Bangunan

  • OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
Tempat asal BUATAN CHINA
Nama merek JUYE,SINOSTEEL
Sertifikasi ISO
Nomor model 304 304L 316L 310S 309S
Kuantitas min Order Negosiasi
Harga negotiable
Kemasan rincian Dikemas dalam kotak kayu
Waktu pengiriman Dalam sebulan
Syarat-syarat pembayaran 20% T / T di PO, 80% sebelum pengiriman
Menyediakan kemampuan 200T

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Deskripsi tabung baja stainless Kelas 304 304L 316L 310S 309S
Diameter luar 8-108mm Standar ASTM A554 JIS G3446
Ketebalan 0.25-3.0mm Panjang sesuai permintaan
Aplikasi Struktur Mekanikal dan Dekorasi Bangunan Bentuk Tabung putaran
Menyoroti

tabung Seamless stainless steel

,

Dilas Stainless Steel Tube
Tinggalkan pesan
Deskripsi Produk
Spesifikasi Utama:

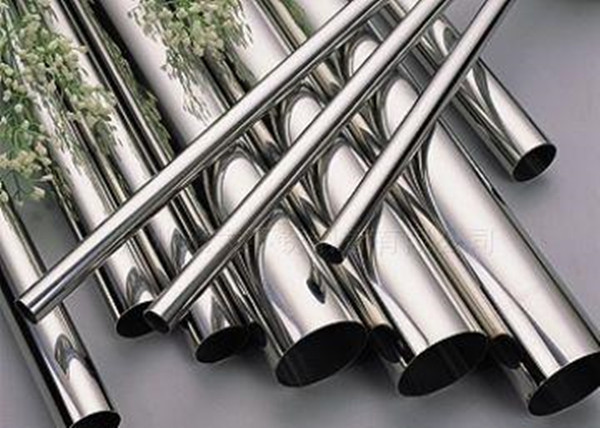

Keterangan: Tabung baja stainless

Bentuk: Putaran

Grade: 304 304L 316L 310S 309S

Outer Diameter: 8-108mm, lihat di sini di bawah daftar terlampir.

Standar: ASTM A554 JIS G3446

Tebal: 0.25-3.0mm

Syarat pembayaran: 20% T / T di PO, 80% sebelum pengiriman

Delivey: dalam sebulan


Rentang Produk

Diameter luar Ketebalan (mm)
mm Inci 0,25 0,30 0,35 0,40 0,50 0,60 0,70 0,80 0,90 1.00 1,20 1,50 2.00 2,50 3.00
8 ● ● ● ● ● ● ● ● ● ●
9.5 3/8 " ● ● ● ● ● ● ● ● ● ●
10 ● ● ● ● ● ● ● ● ● ●
12 ● ● ● ● ● ● ● ● ● ● ●
12.7 1/2 " ● ● ● ● ● ● ● ● ● ● ●
13 ● ● ● ● ● ● ● ● ● ● ●
14 ● ● ● ● ● ● ● ● ● ● ●
15 ● ● ● ● ● ● ● ● ● ● ●
15.9 5/8 " ● ● ● ● ● ● ● ● ● ● ●
18 ● ● ● ● ● ● ● ● ● ● ●
19.1 3/4 " ● ● ● ● ● ● ● ● ● ● ● ● ●
20.5 ● ● ● ● ● ● ● ● ● ● ● ● ●
22.2 7/8 " ● ● ● ● ● ● ● ● ● ● ● ● ●
24 ● ● ● ● ● ● ● ● ● ● ● ● ●
25.4 1 " ● ● ● ● ● ● ● ● ● ● ● ● ●
28.6 1 18 / " ● ● ● ● ● ● ● ● ● ● ● ● ●
29 ● ● ● ● ● ● ● ● ● ● ● ● ●
30 ● ● ● ● ● ● ● ● ● ● ● ● ●
31.8 1 1/4 " ● ● ● ● ● ● ● ● ● ● ● ● ●
34 ● ● ● ● ● ● ● ● ● ● ● ● ●
35 ● ● ● ● ● ● ● ● ● ● ● ● ●
36 ● ● ● ● ● ● ● ● ● ● ● ●
38.1 1 1/2 " ● ● ● ● ● ● ● ● ● ● ● ●
40.5 ● ● ● ● ● ● ● ● ● ● ● ●
41.3 1 5/8 " ● ● ● ● ● ● ● ● ● ● ● ●
42.7 ● ● ● ● ● ● ● ● ● ● ● ●
44.5 1 3/4 " ● ● ● ● ● ● ● ● ● ● ● ●
47 ● ● ● ● ● ● ● ● ● ●
50,8 2 " ● ● ● ● ● ● ● ● ● ● ●
54 ● ● ● ● ● ● ● ● ● ● ●
57 ● ● ● ● ● ● ● ● ● ● ●
60 ● ● ● ● ● ● ● ● ● ● ●
63.5 2 1/2 " ● ● ● ● ● ● ● ● ● ● ●
70 ● ● ● ● ● ● ● ● ● ● ●
76.2 3 " ● ● ● ● ● ● ● ● ● ● ●
84 ● ● ● ● ● ● ● ● ● ● ●
85 ● ● ● ● ● ● ● ● ● ● ●
86.9 ● ● ● ● ● ● ● ● ● ● ●
88.9 3 1/2 " ● ● ● ● ● ● ● ● ● ● ●
101.6 4 " ● ● ● ● ● ● ● ● ● ● ●
108 ● ● ● ● ● ● ● ● ● ●

Perhitungan berat pipa baja stainless

Kelas Densitas (Kg / dm3) Perhitungan
SUS304 SUS304L 7.93 W = 0,02491 t (Dt)
TP304 TP304L 7.90 W = 0,02482 t (Dt)
SUS316 SUS316L 8.00 W = 0,02513 t (Dt)
TP316 TP316L 8.00 W = 0,02513 t (Dt)

Karakteristik Mekanik

Kelas Kekuatan Tarik (N / mm2) Kekerasan (HRB) Kekuatan Hasil (N / mm2) Pemanjangan (%) Ref.Standard
304 ≤ 670 ≤88 ≥205 ≥55% ASTM A240 / A 240M-2012
316L ≥485 ≤88 ≥170 ≥55% ASTM A240 / A 240M-2012
304J1 ≥450 ≤90 ≥155 ≥40% JIS G4304 -2012
321 ≥520 ≤90 ≥205 ≥55% JIS G4304 -2012
S30100 ≤750 ≤93 ≥205 ≥55% ASTM A240 / A 240M-2012
S32205 ≥655 ≤32 ≥450 ≥ 25% ASTM A240 / A 240M-2012
309S ≥515 ≤88 ≥205 ≥40% ASTM A240 / A 240M-2012
310S ≥515 ≤88 ≥205 ≥40% ASTM A240 / A 240M-2012

Aplikasi Utama:

  • Mesin
  • Peralatan medis
  • Peralatan kebugaran
  • Kereta berkecepatan tinggi
  • Automotives
  • Dekorasi dalam ruangan
