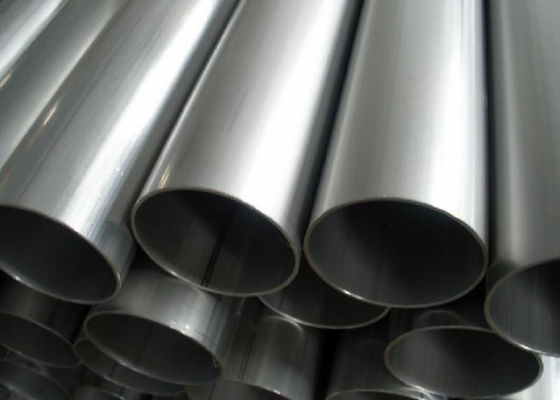

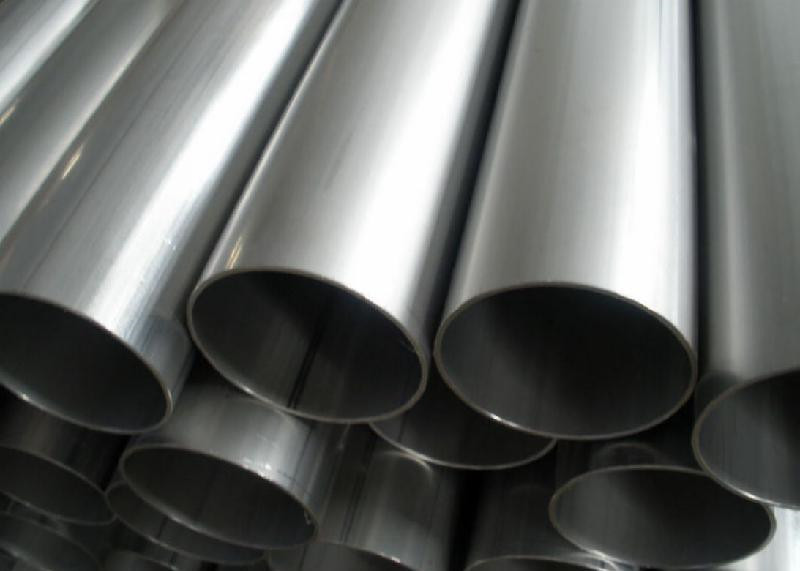

Stok Tabung Baja Tahan Handal untuk Rekayasa Limbah / Industri Petrokimia

  • Reliable Stainless Steel Tube Stock For Sewage Engineering / Petrochemical Industry
Tempat asal BUATAN CHINA
Nama merek SINOSTEEL
Sertifikasi ISO
Nomor model 1.4301 1.4307 1.4401 1.4404
Kuantitas min Order Negosiasi
Harga negotiation
Kemasan rincian ekspor paket
Waktu pengiriman 4 minggu
Syarat-syarat pembayaran 20% T / T di PO, 80% sebelum pengiriman
Menyediakan kemampuan 100T
Detail produk
Deskripsi pipa baja dilas Kelas 1.4301 1.4307 1.4401 1.4404
GAUGE 13.50-610mm Ketebalan dinding 1.20-14.20mm
Standar EN10217-7: 2005 Panjang sesuai permintaan
Aplikasi Pipa Cair Industri
Cahaya Tinggi

pipa baja stainless tanpa batas

,

stok tabung stainless steel
Tinggalkan pesan
Deskripsi Produk
1.4301 1.4307 1.4401 1.4404 ketebalan pipa baja dilas stainless steel 1.20-14.20mm

Rentang Produk

Gauge (mm) Ketebalan Dinding Nominal (mm)
1,20 1,60 2.00 2,30 2.60 2,90 3.20 3.60 4.00 4.50 5.00 5.60 6.30 7.10 8.00 8.80 10.00
13.5 ● ● ● ●
17.2 ● ● ● ●
21.3 ● ● ● ● ●
26.9 ● ● ● ● ● ●
33.7 ● ● ● ● ● ● ●
42.4 ● ● ● ● ● ● ● ●
48.3 ● ● ● ● ● ● ● ● ●
60.3 ● ● ● ● ● ● ● ●
76.1 ● ● ● ● ● ● ● ● ●
88.9 ● ● ● ● ● ● ● ● ● ●
101.6 ● ● ● ● ● ● ● ● ● ●
114.3 ● ● ● ● ● ● ● ● ● ● ●
139.7 ● ● ● ● ● ● ● ● ● ● ●
168.3 ● ● ● ● ● ● ● ● ● ● ● ●
219.1 ● ● ● ● ● ● ● ● ● ● ● ● ●
273 ● ● ● ● ● ● ● ● ● ● ●
323 ● ● ● ● ● ● ● ●
355.6 ● ● ● ● ● ● ● ● ●
406.4 ● ● ● ● ● ● ● ● ●

KOMPOSISI KIMIA

STANDAR KELAS KOMPOSISI KIMIA(%)
Maks Si maks Mn maks P maks S maks Ni Cr Mo
EN10217-7 1.4301 0,07 1.00 2.00 0,045 0,015 8.00-10.50 17.00-19.50 2.00-2.50
1.4307 0,03 1.00 2.00 0,045 0,015 8.00-10.00 17.50-19.50 2.00-2.50
1.4401 0,07 1.00 2.00 0,045 0,015 10.00-13.00 16.50-18.50 2.00-2.50
1.4404 0,03 1.00 2.00 0,045 0,015 10.00 ~ 13.00 16.50 ~ 18.50 2,00 ~ 2,50

Karakteristik Mekanik

EN10217-7 Kelas Kekuatan Hasil Daya tarik Pemanjangan Kekerasan
KSi (Mpa) KSi (Mpa) % HRB
1.4301 ≥195 500-700 ≥40b ≤90
1.4307 ≥180 470-670 ≥40b ≤90
1.4401 ≥206 510-710 ≥40b ≤90
1.4404 ≥190 490-690 ≥40b ≤90

Aplikasi Utama:

  • Petrokimia
  • Pembuatan kertas
  • Energi
  • Uap
  • Rekayasa Limbah
